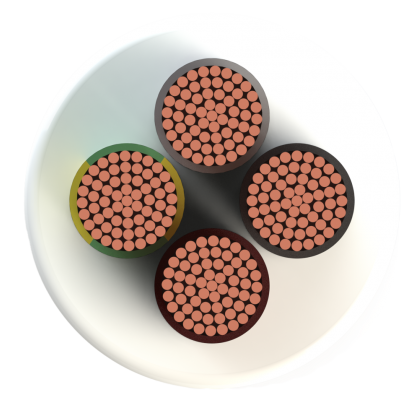

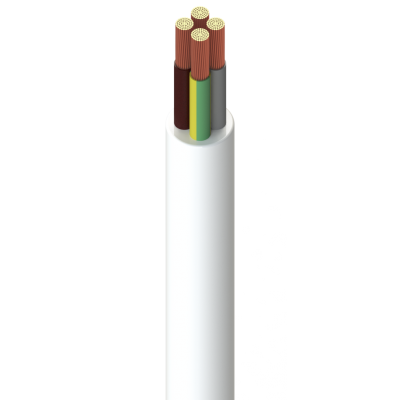

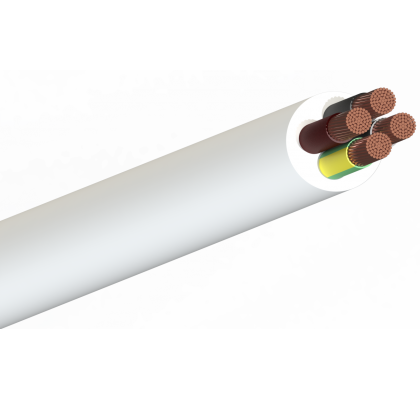

| Type | XLPE Insulation, Halogen Free, Multi-core Flexible Cables |
|---|---|
| Construction |
Conductor:Fine-stranded copper (Class 5) Outer Sheath: LSZH:Low smoke zero halogen |
| Applications | Used in refineries, hotels, schools, tunnels, high constructions, hospitals, power plants, data processing centers, populated business centers where there is a risk of fire. |
| Standards |
TSE K 176 |
| 052XZ1-F (300/500 V) | Cu/XLPE/LSZH | |||
|---|---|---|---|---|
| Nominal Cross Sectionmm²) | Overall Diameter mm approximately | Net Weight kg/km approximately | Conductor DC Resistance at (20°C) max (Ω/km) | Current Carrying Capacity in Air (A) |
| 2x0,75 | 6,1 | 55 | 26,0 | 6 |
| 2x1 | 6,4 | 63 | 19,5 | 10 |
| 2x1,5 | 8,3 | 103 | 13,3 | 16 |
| 2x2,5 | 9,1 | 135 | 7,98 | 25 |
| 2x4 | 10,3 | 182 | 4,95 | 32 |
| 3x0,75 | 6,5 | 63 | 26,0 | 6 |
| 3x1 | 6,8 | 74 | 19,5 | 10 |
| 3x1,5 | 8,4 | 113 | 13,3 | 16 |
| 3x2,5 | 9,7 | 156 | 7,98 | 25 |
| 3x4 | 11,1 | 224 | 4,95 | 32 |
| 4x0,75 | 7,3 | 81 | 26,0 | 6 |
| 4x1 | 7,7 | 97 | 19,5 | 10 |
| 4x1,5 | 9,3 | 141 | 13,3 | 16 |
| 4x2,5 | 10,6 | 193 | 7,98 | 25 |
| 4x4 | 12,2 | 280 | 4,95 | 32 |
| 5x0,75 | 7,9 | 99 | 26,0 | 6 |
| 5x1 | 8,0 | 117 | 19,5 | 10 |
| 5x1,5 | 9,6 | 154 | 13,3 | 16 |
| 5x2,5 | 10,6 | 209 | 7,98 | 25 |
| 5x4 | 13,2 | 332 | 4,95 | 32 |
| Min. bending radius |
D ≤ 12 ise: 5 x D D > 12 ise: 6 x D |
|---|---|
| Max. short-circuit temperature | 250 °C |
| Max. operating temperature | 90 °C |
| Rated voltage Uo/U | 300/500 V |
| AC test voltage | 2 kV |
| Low smoke | EN 61034 |
| Flame retardant test of bunched cables | EN 60332-3-24 Cat.C |
| Halogen-free | EN 50525-1, EN 50267 |
