| Type | Flexible, Heart Resisting, Multi-core Cables |
|---|---|
| Construction |
Conductor: Fine-stranded copper(Class 5) Insulation: HR-PVC: High temperature resistant polyvinyl chloride Outer Sheath: HR-PVC: High temperature resistant polyvinyl chloride |
| Applications | Low voltage household appliances under less mechanical compulsion in high temperature environments. |
| Standards | TS EN 50525-2-11, BS EN 50525-2-11, DIN EN 50525-2-11, EN 50525-2-11 |

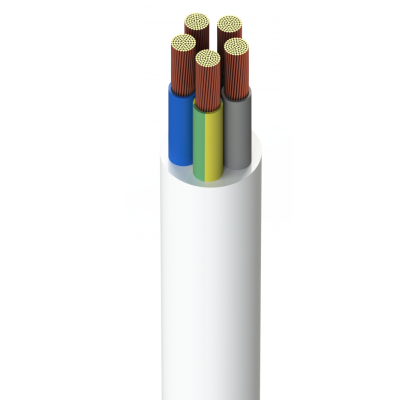

| H03V2V2-F (300/300 V) / 209Y | Cu/HR-PVC/HR-PVC | |||
|---|---|---|---|---|
| Nominal Cross Section (mm²) | Overall Diameter mm approximately | Net Weight kg/km approximately | Conductor DC Resistance at (20°C) max.Ω/km) | Current Carrying Capacity in Air (A) |
| 2x0,50 | 5,0 | 37 | 39,0 | 3 |
| 2x0,75 | 5,5 | 46 | 26,0 | 6 |
| 3x0,50 | 5,3 | 43 | 39,0 | 3 |
| 3x0,75 | 6,3 | 61 | 26,0 | 6 |
| 4x0,50 | 5,8 | 53 | 39,0 | 3 |
| 4x0,75 | 6,4 | 68 | 26,0 | 6 |
| H05V2V2-F (300/500 V) / 309Y | ||||
|---|---|---|---|---|
| Nominal Cross Section (mm²) | Overall Diameter mm approximately | Net Weight kg/km approximately | Conductor DC Resistance at (20°C) max. (Ω/km) | Current Carrying Capacity in Air (A) |
| 2x0,75 | 6,3 | 57 | 26,0 | 6 |
| 2x1 | 6,6 | 65 | 19,5 | 10 |
| 2x1,5 | 7,4 | 84 | 13,3 | 16 |
| 2x2,5 | 9,1 | 130 | 7,98 | 25 |
| 2x4 | 10,4 | 179 | 4,95 | 32 |
| 3x0,75 | 6,7 | 68 | 26,0 | 6 |
| 3x1 | 7,0 | 78 | 19,5 | 10 |
| 3x1,5 | 8,1 | 106 | 13,3 | 16 |
| 3x2,5 | 9,9 | 163 | 7,98 | 25 |
| 3x4 | 11,3 | 227 | 4,95 | 32 |
| 4x0,75 | 7,3 | 82 | 26,0 | 6 |
| 4x1 | 7,9 | 100 | 19,5 | 10 |
| 4x1,5 | 9,0 | 134 | 13,3 | 16 |
| 4x2,5 | 10,8 | 201 | 7,98 | 25 |
| 4x4 | 12,3 | 280 | 4,95 | 32 |
| 5x0,75 | 8,1 | 102 | 26,0 | 6 |
| 5x1 | 8,6 | 120 | 19,5 | 10 |
| 5x1,5 | 10,0 | 166 | 13,3 | 16 |
| 5x2,5 | 12,0 | 249 | 7,98 | 25 |
| 5x4 | 13,9 | 355 | 4,95 | 32 |
| Min. bending radius |
if D≤12: 5xD if D>12: 6xD |
|---|---|
| Max. operating temperature |
90 °C / 105 °C |
| Rated voltage Uo/U |
300/500 V – 500/300 V |
| AC test voltage |
2 kV |
| Max. short-circuit temperature | 150 °C |
|---|---|
| Flame propagation test on single cable | EN 60332-1 |
