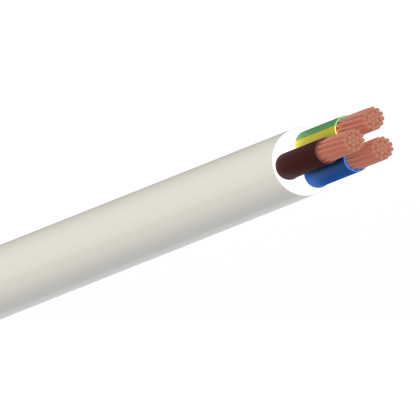

| Type | PVC Insulated, Multi-core Cables with Flexible Conductor |
|---|---|
| Construction |

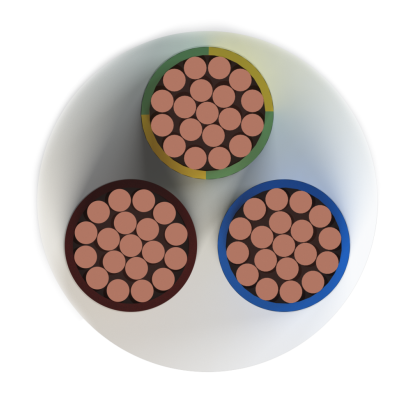

Conductor: Fine-stranded copper (Class 5) Outer Sheath: Polyvinyl chloride |
| Applications | Used in household appliances operating in humid locations with low mechanical stress. |
| Standards |
TS EN 50525-2-11, BS EN 50525-2-11, DIN EN 50525-2-11,IEC 60227-5 |

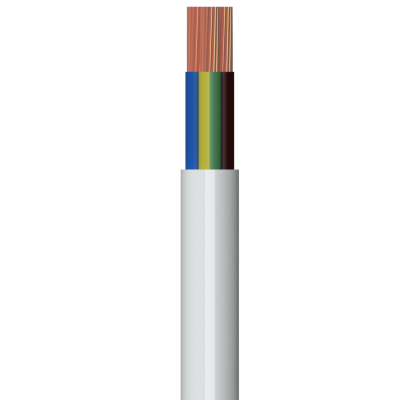

Cu/PVC/PVC – H03VV-F (300/300 V)
| Nominal Cross Section (mm²) | Overall Diameter mm approximately | Net Weight kg/km approximately | Conductor DC Resistance at 20°C max ohm/km | Current Carrying Capacity in Air (A) |
|---|---|---|---|---|
| 2x0,50 | 5,0 | 36 | 39,0 | 3 |
| 2x0,75 | 5,5 | 46 | 26,0 | 6 |
| 3x0,50 | 5,3 | 43 | 39,0 | 3 |
| 3x0,75 | 5,8 | 54 | 26,0 | 6 |
| 4x0,50 | 5,8 | 53 | 39,0 | 3 |
| 4x0,75 | 6,4 | 68 | 26,0 | 6 |
| Min. bending radius |
if D ≤ 12 : 5D if D > 12 : 6D |
|---|---|
| Max. short-circuit temperature | 150 °C |
| Max. operating temperature | 60 ° |
| Rated voltage Uo/U |
300/300 V |
| AC Test voltage | 2 kV |
| Flame propagation test on single cable | EN 60332-1 |
| Lead-free |
