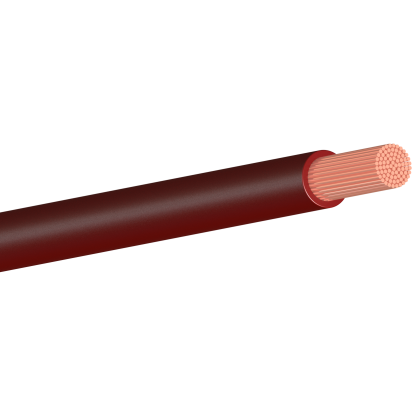

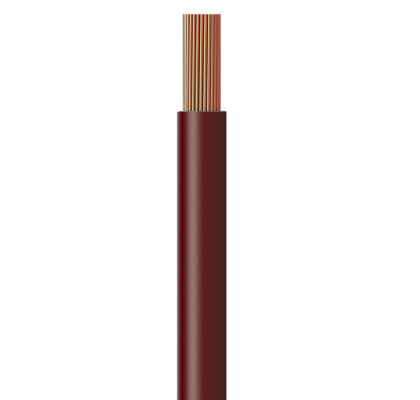

| Type | PVC Insulated, Sıngle Core Cables with Flexible Copper Conductor |
|---|---|

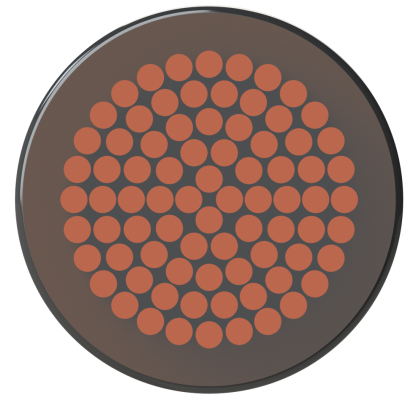

| Construction | Conductor: Fine,stranded copper (Class 5) Insulation: PVC: Polyvinyl chloride |
| Applications |
Used in closed and dry areas, switch and disribution boards, and also used for moving installations and equipments. |
| Standards | TS EN 50525-2-31, BS EN 50525-2-31, DIN EN 50525-2-31, IEC 60227-3 |
| Nominal Cross Section (mm²) | Overall Diameter mm approximately | Net Weight kg/km approximately | Conductor DC Resistance at (20°C) max. (Ω/km) | Current Carrying Capacity in Conduit (A) | Current Carrying Capacity in Air (A) |
|---|---|---|---|---|---|
|
H05V-K (300/500 V) / 2491X |
|||||
| 0,5 | 2,0 | 9 | 39,0 | - | - |
| 0,75 | 2,2 | 12 | 26,0 | - | 16 |
| 1 | 2,4 | 13 | 19,5 | 11 | 20 |
| H07V-K (450/750 V) / 6491X | |||||
| 1,5 | 2,8 | 19 | 13,3 | 14,5 | 24 |
| 2,5 | 3,4 | 30 | 7,98 | 19,5 | 32 |
| 4 | 3,9 | 44 | 4,95 | 26 | 42 |
| 6 | 4,4 | 63 | 3,30 | 34 | 54 |
| 10 | 6,1 | 112 | 1,91 | 46 | 73 |
| 16 | 7,4 | 169 | 1,21 | 61 | 98 |
| 25 | 9,0 | 251 | 0,780 | 80 | 129 |
| 35 | 10,9 | 369 | 0,554 | 99 | 158 |
| 50 | 13,0 | 528 | 0,386 | 119 | 198 |
| 70 | 14,7 | 730 | 0,272 | 151 | 245 |
| 95 | 16,9 | 969 | 0,206 | 182 | 292 |
| 120 | 18,8 | 1212 | 0,161 | 210 | 344 |
| 150 | 21,0 | 1521 | 0,129 | 240 | 391 |
| 185 | 23,3 | 1857 | 0,106 | 273 | 448 |
| 240 | 26,6 | 2443 | 0,0801 | 320 | 528 |
| 300 | 28,8 | 2818 | 0,0641 | - | 689 |
| 400 | 32,2 | 3635 | 0,0486 | - | 789 |
| Min. bending radius |
if D ≤ 8 : 4 x D if 8 < D ≤ 12 : 5 x D if D > 12 : 6 x D |
|---|---|
| Max. short-circuit temperature | 160 °C |
| Max. operating temperature | 70 °C |
| Rated voltage Uo/U | 300/500 V, 450/750 V |
| AC test voltage | 2 kV / 2,5 kV |
| Flame propagation test on single cable | EN 60332-1 |
| Lead-free |
