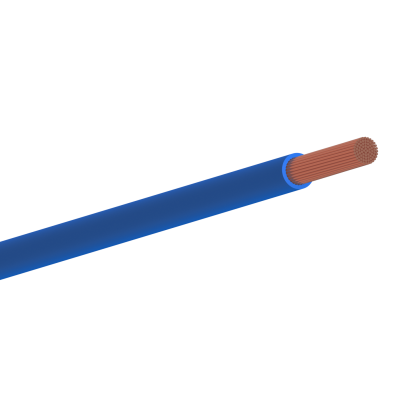

| Type | Halogen Free, Flame Retardant, Heat Resistant, Flexible, Single Core Cables |
|---|---|
| Construction |

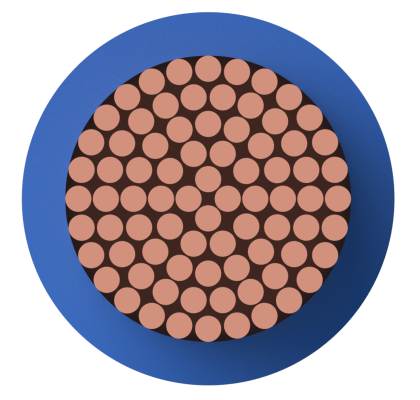

Conductor: Fine,stranded copper (Class 5) Insulation: XL-LSZH: |
| Applications | Installation in surface mounted or embedded conduits or similar closed systems. Low level of smoke emission and corrosive gases in case of fire. |
| Standards | TS EN 50525-3-41, BS EN 50525-3-41 |
| Nominal Cross Section (mm²) | Overall Diameter mm approximately | Net Weight kg/km approximately | Conductor DC Resistance at (20°C) max.(Ω/km) | Current Carrying Capacity in Conduit (A) | Current Carrying Capacity in Air (A) | |
|---|---|---|---|---|---|---|

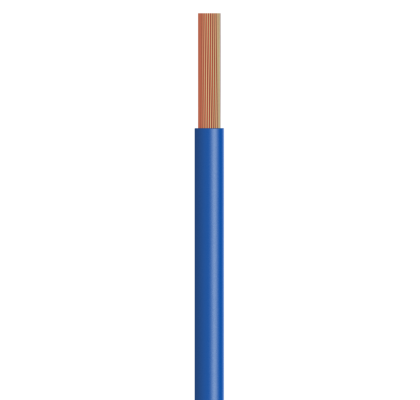

| H05Z-K (300/500 V) / 2491B | Cu/XL-LSZH | |||||
| 0,50 | 2,1 | 9 | 39,0 | - | 12 | |
| 0,75 | 2,3 | 12 | 26,0 | - | 15 | |
| 1 | 2,5 | 13 | 19,5 | 11 | 19 | |
| H07Z-K (450/750 V) / 6491B | ||||||
| 1,5 | 3,0 | 19 | 13,3 | 14,5 | 24 | |
| 2,5 | 3,7 | 30 | 7,98 | 19,5 | 32 | |
| 4 | 4,5 | 44 | 4,95 | 26 | 42 | |
| 6 | 5,5 | 61 | 3,30 | 34 | 54 | |
| 10 | 6,5 | 105 | 1,91 | 46 | 73 | |
| 16 | 7,5 | 158 | 1,21 | 61 | 98 | |
| 25 | 10,0 | 253 | 0,780 | 80 | 129 | |
| 35 | 11,0 | 345 | 0,554 | 99 | 158 | |
| 50 | 13,0 | 495 | 0,386 | 119 | 198 | |
| 70 | 15,0 | 670 | 0,272 | 151 | 245 | |
| 95 | 17,0 | 905 | 0,206 | 182 | 292 | |
| 120 | 19,0 | 1132 | 0,161 | 210 | 344 | |
| 150 | 21,0 | 1415 | 0,129 | 240 | 391 | |
| 185 | 23,3 | 1720 | 0,106 | 273 | 448 | |
| 240 | 27,0 | 2255 | 0,0801 | 320 | 528 |
| Min. bending radius |
if D ≤ 8 : 4 x D if 8 < D ≤ 12 : 5 x D if D > 12 : 6 x D |
|---|---|
| Max. short-circuit temperature | 250 °C |
| Max. operating temperature | 90 °C |
| Rated voltage Uo/U | 300/500 V, 450/750 V |
| AC test voltage | 2 kV / 2,5 kV |
| Flame propagation test on single cable | EN 60332-1 |
| Low smoke | EN 61034 |
| Halogen-free | EN 50267-1, EN 50267 |
