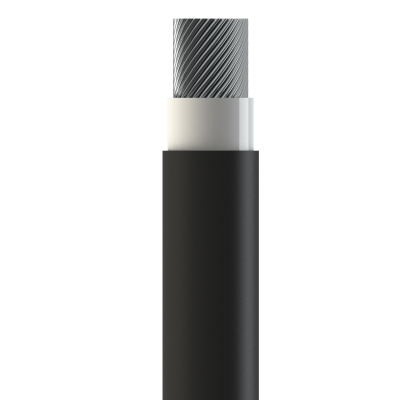

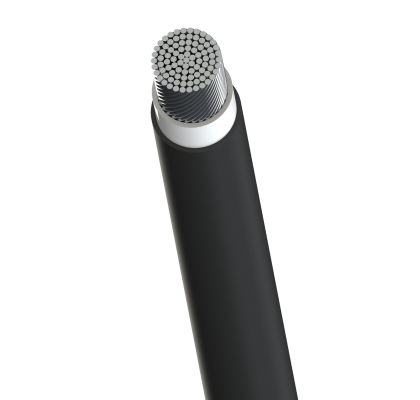

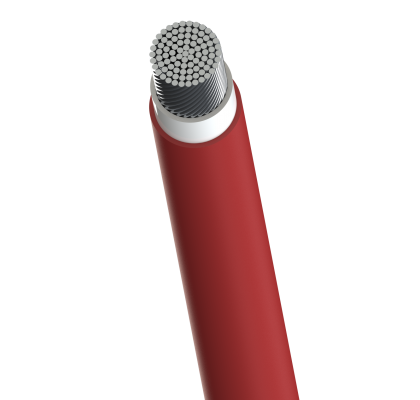

H1Z2Z2-K Solar Cable

Type	Halogen Free Cable for Use in Photovoltaic Systems

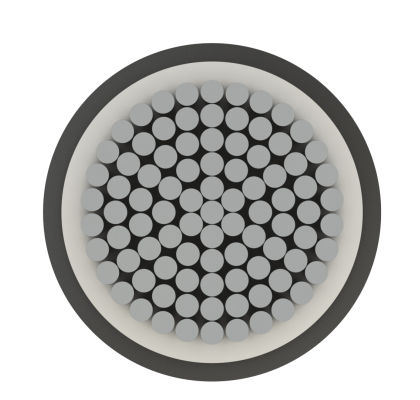

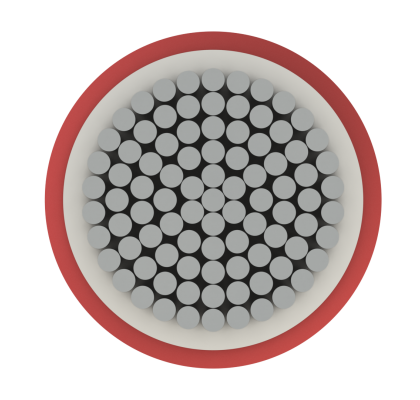

Construction	Conductor: Fine stranded tinned copper (Class 5) Insulation: Special crosslinked compound LSOH (Halogen Free) Outer Sheath: Special crosslinked compound LSOH (Halogen Free)
Applications	These cables are designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions. Especially designed to connect solar panels for permanent junction boxes and inverters. Good abrasion and ozone resistant flame-retardant properties. Halogen-free, oilresistant, reduced diameter ,and outstanding flexibility
Standards	EN 50618 62930 IEC 131

Nominal Cross Section (mm²)	Maximum DC Resistance of the Conductor at 20°C (Ω/km)	Maximum Insulation Resistance at 20°C (MΩ/km)	Maximum Insulation Resistance at 90°C (MΩ/km)	Current Carrying Capacity Single cable free in air	Current Carrying Capacity Single cable on surfaces	Current Carrying Capacity Two loaded cables adjacent on surfaces
1x1,5	13,7	860	0,86	30	29	24
1x2,5	8,21	690	0,69	41	39	33
1x4	5,09	580	0,58	55	52	44
1x6	3,39	500	0,50	70	67	57
1x10	1,95	420	0,42	98	93	79
1x16	1,24	340	0,34	132	125	107
1x25	0,795	340	0,34	176	167	142
1x35	0,565	290	0,29	218	207	176
1x50	0,393	270	0,27	276	262	221
1x70	0,277	250	0,25	347	330	278
1x95	0,210	220	0,22	416	395	333
1x120	0,164	210	0,21	488	464	390
1x150	0,132	210	0,21	566	538	453
1x185	0,108	200	0,20	644	612	515
1x240	0,082	200	0,20	775	736	620

Maximum permissible operating voltage AC	1,2 / 1,2 kV
Maximum permissible operating voltage DC	1,8 / 1,8 kV
AC test voltage	6,5 kV
Minimum operating temperature	-40 °C
Maximum permissible conductor operating temperature	120 °C
Maximum permissible conductor temperature during short circuit (max. 5 sec.)	250 °C
Minimum bending radius during laying (mm)	5×Cable Ø
Flame propagation test on single cable	EN 60332-1-2

Anti-Rodent/Anti-Termit Certificate

View The Document Download

H1Z2Z2-K (SOLAR ) KABLO AD7/AD8 Water Resisatance (7)

View The Document Download

EN 50575:2014+A1:2016 (DOP Dca) (5)

View The Document Download

H1Z2Z2-K Cable Performance Consistency Certificate (Dca) (4)

View The Document Download

EN 50575:2014+A1:2016 (DOP Cca) (3)

View The Document Download

TUV NORD H1Z2Z2-K (SOLAR) CABLE CERTIFICATE (1)

View The Document Download

OTHER PRODUCTS

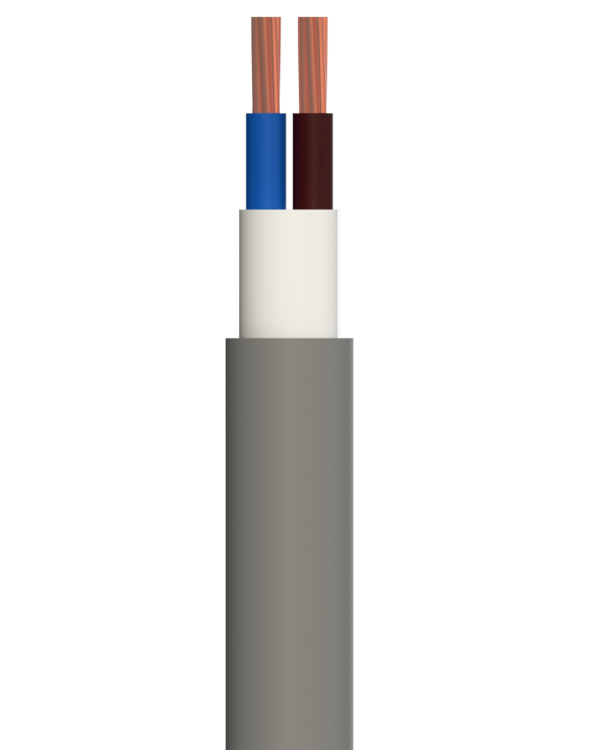

(NVV) NYM
