| Type | PVC Insulated, Low Voltage Power Cables |
|---|---|

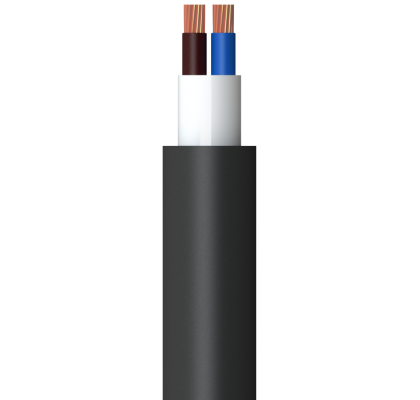

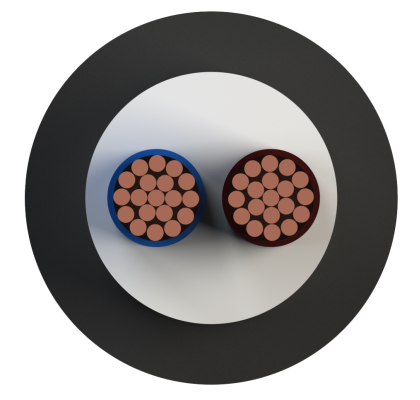

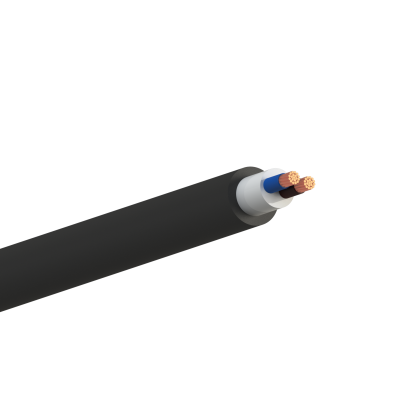

| Construction |
Conductor:Solid or stranded copper (Class1 or Class2) Insulation: PVC: Polyvinyl chloride Filler: PVC: Polyvinyl chloride Outer Sheath: PVC: Polyvinyl chloride |
| Applications | Used in underground which there not much outer factors and inside cable conduits. |
| Standards | TS IEC 60502-1, IEC 60502-1, DIN VDE 0276-603 |
| Nominal Cross Section | Overall Diameter mm approximately | Net Weight kg/km approximately | Conductor DC Resistance at (20°C) max. (Ω/km) | Current Carrying Capacity in Ground(A) | Current Carrying Capacity in Air (A) | |
|---|---|---|---|---|---|---|
| Cu/PVC/PVC/PVC | ||||||
| 2x1,5 | 10,54 | 161 | 12,1 | 32 | 22 | |
| 2x2,5 | 11,32 | 196 | 7,41 | 42 | 30 | |
| 2x4 | 13,02 | 272 | 4,61 | 54 | 40 | |
| 2x6 | 14,02 | 334 | 3,08 | 68 | 51 | |
| 2x10 | 16,30 | 478 | 1,83 | 90 | 70 | |
| 2x16 | 18,80 | 675 | 1,15 | 116 | 94 | |
| 3x1,5 | 10,80 | 177 | 12,1 | 27 | 19,5 | |
| 3x2,5 | 11,90 | 229 | 7,41 | 36 | 25 | |
| 3x4 | 13,70 | 322 | 4,61 | 47 | 34 | |
| 3x6 | 14,80 | 403 | 3,08 | 59 | 43 | |
| 3x10 | 17,50 | 596 | 1,83 | 79 | 59 | |
| 3x16 | 19,50 | 813 | 1,15 | 102 | 79 | |
| 4x1,5 | 12,00 | 222 | 12,1 | 27 | 18,5 | |
| 4x2,5 | 13,00 | 280 | 7,41 | 36 | 25 | |
| 4x4 | 15,00 | 398 | 4,61 | 47 | 34 | |
| 4x6 | 16,20 | 500 | 3,08 | 59 | 43 | |
| 4x10 | 19,00 | 734 | 1,83 | 79 | 60 | |
| 4x16 | 21,50 | 1026 | 1,15 | 102 | 80 | |
| 5x1,5 | 12,10 | 231 | 12,1 | 26 | 18,6 | |
| 5x2,5 | 13,10 | 295 | 7,41 | 34 | 25 |
|
Min. bending radius |
12 x D |
|---|---|
| Max. short-circuit temperature | 160 °C |
| Max. operating temperature | 70 °C |
| Rated voltage Uo/U | 0,6/1 kV |
| Test voltage | 3,5 kV |
| Flame propagation test on single cable | EN 60332-1 |
| Lead-free |
