YXV (N2XY)
| Type | XLPE Insulated, single core cables with copper conductor |
|---|---|
| Construction |

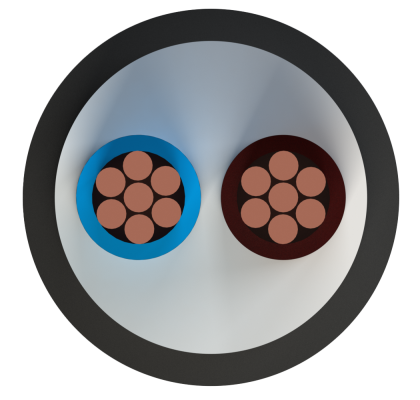

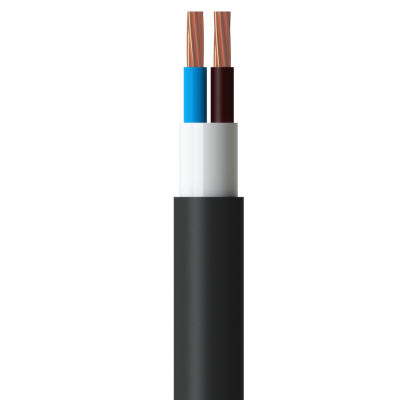

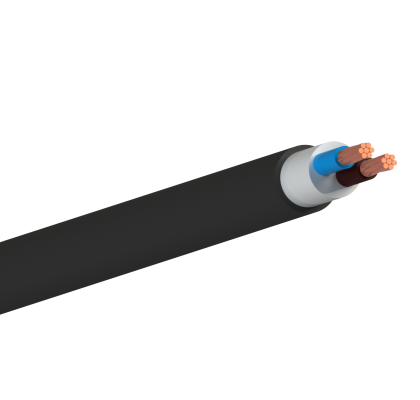

Conductor: Solid or stranded copper (Class 1 or Class 2) Insulation: XLPE: Cross linkable polyethylene Filler: PVC: Polyvinyl chloride Outer Sheath: PVC: Polyvinyl chloride |
| Applications | This cable having very low dialectic loss is used indoor, in cable ducts and in industrial plants or switching stations where mechanical damage is not anticipated. Suitable for comparatively high ambient temperature due to high maximum permissible conductor temperature. |
| Standards | TS IEC 60502-1, IEC 60502-1, DIN VDE 0276-603, IS 1516.1 |
